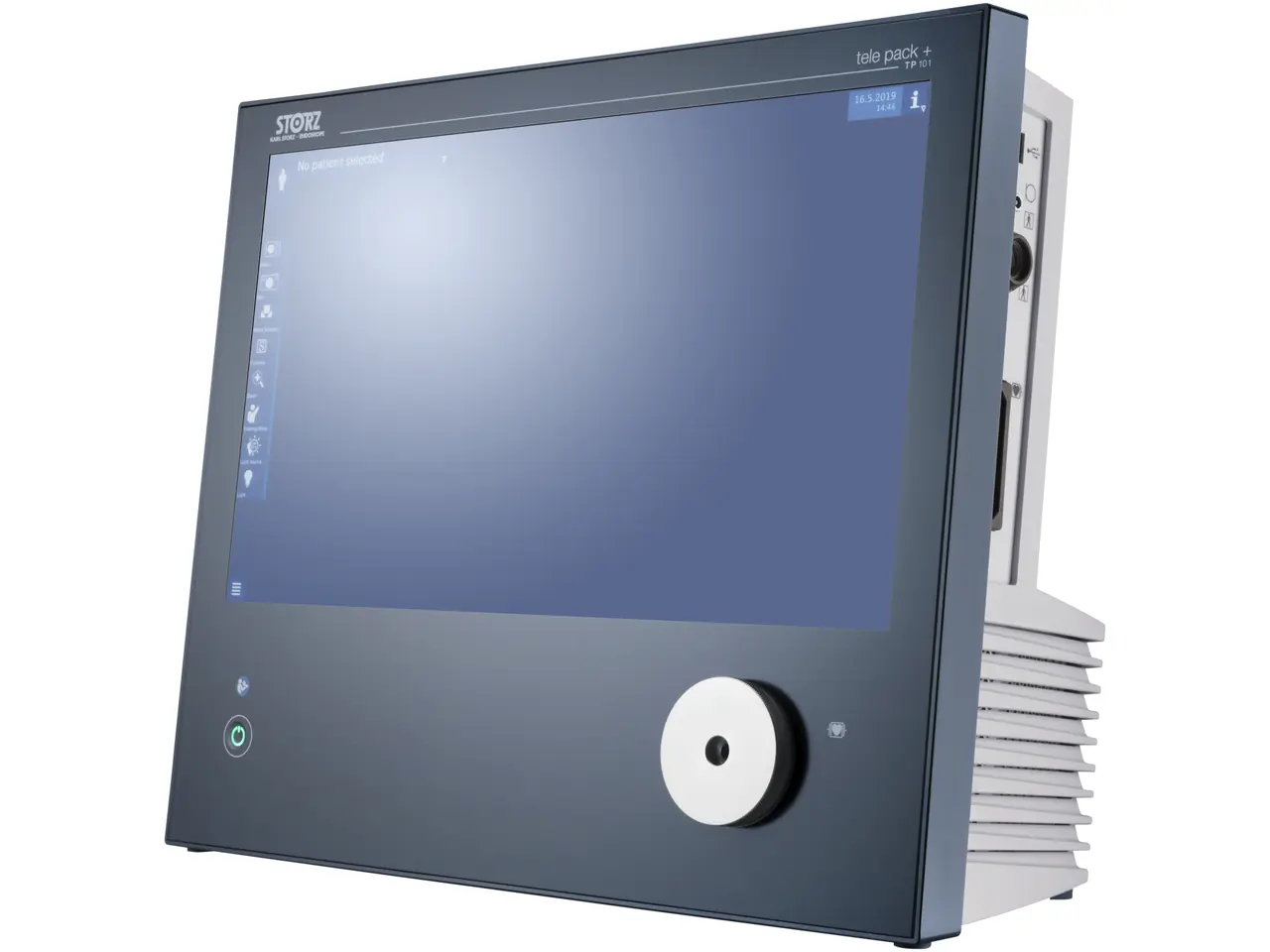

KARL STORZ TELE PACK+ – TP101
The TELE PACK+ (item no. TP101) is a compact endoscopic video unit by KARL STORZ. It combines a Full HD touchscreen monitor, LED light source, camera inputs and image documentation functions in one portable system. KARL STORZ describes it for use with compatible rigid, flexible and single-use endoscopes.
TP101 has X-Line and C-Line camera inputs for compatible flexible videoendoscopes and single-chip camera heads up to Full HD. Images and videos can be stored internally or on USB media; a network function provides another data-transfer option. The camera head, endoscope and other procedure-specific components should be confirmed separately in the quotation.
Product Information
| Specification | Details |
|---|---|
| Brand | KARL STORZ |
| Product | TELE PACK+ |
| Product Type | Integrated endoscopic video unit |
| REF / SKU | TP101 |
| Application | Endoscopic visualization and image/video documentation |

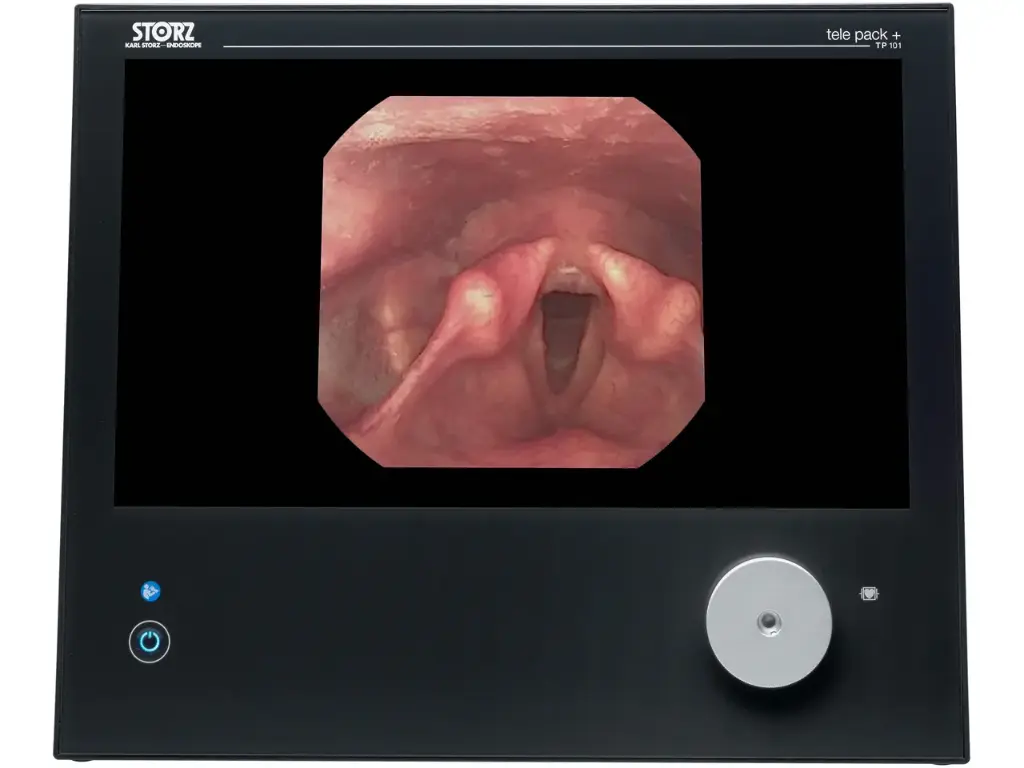

| Display | 18.5-inch Full HD touchscreen |
| Camera Inputs | X-Line and C-Line |
| Light Source | Integrated LED |
Key Features
- Combines an endoscopic video unit, touchscreen display and LED light source in a compact system.
- Provides an 18.5-inch Full HD touchscreen with 1920 × 1080-pixel resolution.
- Has X-Line and C-Line inputs for compatible camera heads and videoendoscopes.
- Includes an integrated digital image-processing module.
- Records still images in JPEG format and video in MPEG-4 format.
- Supports internal, USB and network storage options.

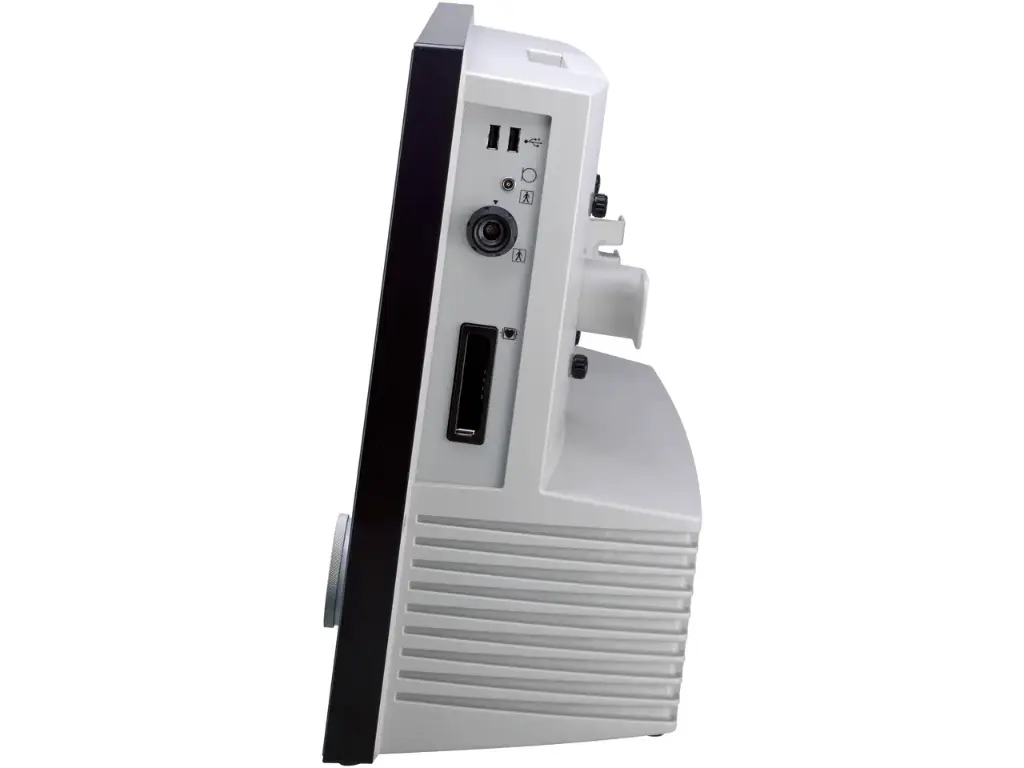

- Provides six USB interfaces: four at the rear and two at the side.
- Includes an Ethernet interface for network connectivity.
- Can be controlled through the touchscreen, keyboard, mouse, compatible camera-head buttons or footswitch.
- Has a DVI-D output for a compatible external display.
- Supports VESA 100 mounting.
Technical Specifications
| Specification | Details |
|---|---|
| Model / REF | TELE PACK+ / TP101 |
| Display Size | 18.5 inches |
| Display Type | Full HD touchscreen |
| Resolution | 1920 × 1080 pixels |
| Contrast Ratio | 1200:1 |
| Illumination Technology | Integrated LED |
| Average Lamp Service Life | 30,000 hours |
| Camera Inputs | 2: X-Line and C-Line |
| Image Format | JPEG |
| Video Format | MPEG-4 |
| Storage Options | Internal, USB and network |
| USB Interfaces | 6: four rear, two side |
| Network Connection | Ethernet |
| Video Output | 1 × DVI-D |
| Dimensions (W × H × D) | 470 × 387 × 222 mm |
| Weight | 8.85 kg |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Power Consumption | 140 VA |
| IP Protection Rating | IPX0 |
| Electrical Protection Class | Class I |
| Applied-Part Safety Classification | CF or BF, depending on the camera connection |
TP101 does not have an integrated pump for air insufflation, according to KARL STORZ’s specifications.
Compatible accessories and components
The following camera head is identified within KARL STORZ’s TELE PACK+ product grouping. It is a separate component; its inclusion with TP101 has not been established.
| Component | REF | Description |
|---|---|---|
| IMAGE1 S HX | TH110 | Full HD, X-Line endoscopic camera head listed with TELE PACK+ |
KARL STORZ also describes TP101 as compatible with selected rigid, flexible and single-use endoscopes. The exact endoscope, light cable, documentation peripherals and mounting components should be selected for the intended procedure and confirmed against the proposed configuration.
B2B Supply
Amalgam Med supplies KARL STORZ endoscopic imaging equipment to hospitals, clinics, healthcare distributors, procurement organizations and international B2B buyers.
For KARL STORZ TELE PACK+ – REF TP101, contact us for:
- Wholesale and distributor pricing
- Bulk procurement
- Hospital and institutional supply
- International sourcing
- Availability and lead time
- Export documentation
- Shipping and delivery options
- Compatible accessories and components
- Project-based and institutional quotations
Request a quotation for KARL STORZ TELE PACK+ – TP101.
Important Regulatory Notice
Medical-device availability, configuration and registration requirements may vary by country. Buyers should verify local regulatory requirements and product availability before procurement.
